With automatic network discovery IPHost Network Monitor helps you to create a basis of your monitoring configuration. Discovery detects network hosts and identifies TCP services on them. IPHost Monitor can discover hosts and TCP services using ICMP PING, HTTP(S), FTP, SMTP, POP3, IMAP, Telnet, plus you can select additional custom ports to check. Monitors for databases, disc space, processor usage and others you can add manually. Default monitoring and alerting settings let you start monitoring with minimum changes. Regular rediscoveries help you in equipment relocation/presence tracking
Easy to follow three-page wizard helps you to specify network discovery parameters. You can start the wizard by clicking Discover Network button on program toolbar or from File > Discover Network menu.

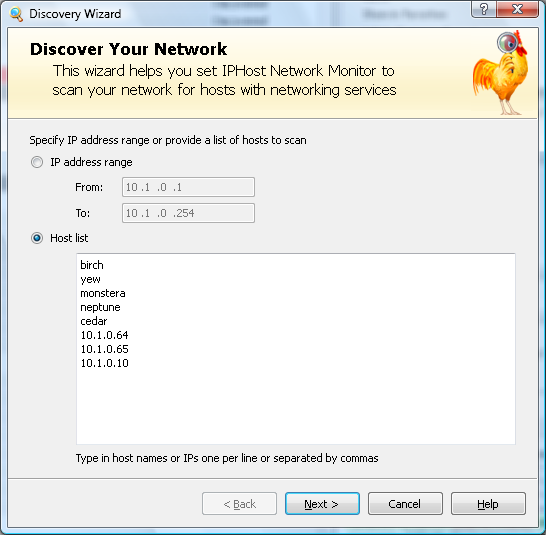

On the first page of the wizard you can adjust IP range that will be used during discovery. IPHost Monitor determines subnet mask of your network automatically.

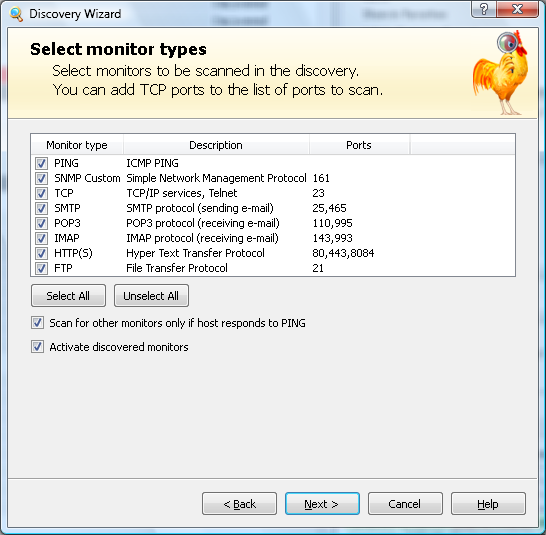

On the second page you can select types of services that should be detected during discovery. Current version of IPHost Network Monitor supports discovery of hosts and TCP services using the following protocols: ICMP PING, TCP, UDP, HTTP(S), FTP, SMTP, POP3, IMAP, Telnet, also you can provide list of custom ports to be used in discovery.
“Scan for other monitors only if host responds to PING” checkbox is selected by default to speed up the discovery. But if in you network there are hosts that don’t respond to PING and you want these hosts to be discovered you should deselect this checkbox.
If you want to set IPHost Monitor to start polling discovered monitors immediately after discovery you should select the “Activate discovered monitors” checkbox. Otherwise, discovered monitors remain in Discovered state and you have to start them manually.

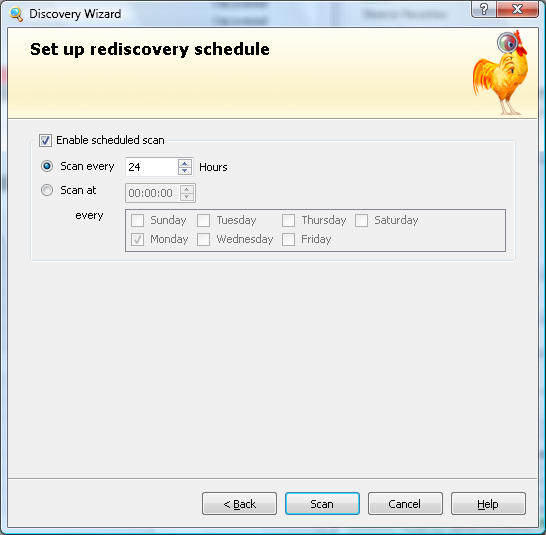

The last page lets you set rediscovery schedule. You can set IPHost Monitor to do rediscovery every several hours or to scan network at a specified time on selected weekdays. You can also change rediscovery schedule parameters from Tool > Setting menu, Rediscovery tab.
After completing the wizard please click Scan button. You can review discovered monitors and their properties during network discovery.
